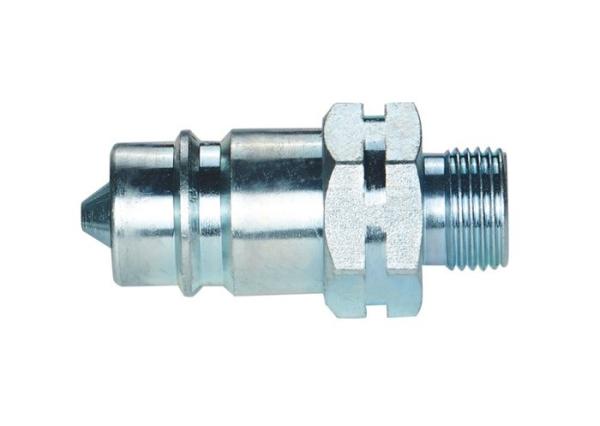

Push Pull Male Therad Stainless Steel Pipe Nipples Hydraulic Metric Agriculture Machine

Brand Name : QPE

Model Number : KZA-PF-M

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300

Price : Negotiable

Supply Ability : 90,000pcs/Week, according the capacity of the assembly workshop

Delivery Time : Within 30 days or as per customers' requirement.

Packaging Details : Standard exporting package or as per customers' requests.

Material : Carbon Steel

Size : M14 - M30

Thread : BSPP, NPT, METRIC

Connection : Locking balls

Standard : ISO 7241-1 series “A”, poppet valve

Zinc : CR3

Contact Now

Steel Push And Pull Hydraulic Metric Male Therad Nipples For Agriculture Machine

Features:

1. Double acting sleeve for one handed operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Ball valves available for rugged dependability in heavy-duty hydraulic applications, within rated working pressure.
4. Critical parts are induction hardened for durability
5. Dependable ball-locking mechanism holds the mating halves together.
6. Couplers and nipple are precision machined from solid bar stock.

Specifications:

Body size (in)	3/8 1/2
Rated Pressure (Bar)	200 200
Material:	Carbon steel
Standard seal material:	NBR (other material is available on request)
Temperature Range (Std seals):	-20°C to +80°C

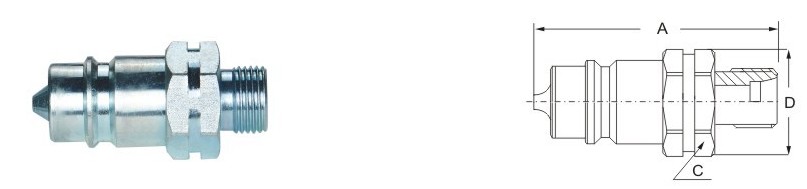

Nipples-Male Thread

Push Pull Male Therad Stainless Steel Pipe Nipples Hydraulic Metric Agriculture Machine

Part No.	Thread Size BSPP	T (mm.)	A Overall Length (mm.)	C Hex Size (mm.)	D Largest Diameter (mm.)
KZA-14PF-M	M14X1.5	8.0	56.0	27.0	31.0
KZA-16PF-M	M16X1.5	10.0	56.0	27.0	31.0
KZA-18PF-M	M18X1.5	12.0	56.0	27.0	31.0
KZA-22PF-M	M22X1.5	15.0	56.0	27.0	31.0
KZA-24PF-M	M24X1.5	16.0	58	27	31.0
KZA-26PF-M	M26X1.5	18.0	60	30	34.0
KZA-30PF-M	M30X2	20	62	30	34.0
