Carbon Steel Hydraulic Quick Connect Couplings Release Plug For Gas Transfer Lines

Brand Name : QPE

Model Number : KZB-PF SERIES

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300

Price : Negotiable

Supply Ability : 90,000pcs/week, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

Standard : ISO 7241-1 series “B”

WP : Working pressures to 5,000 psi (345 bar)

Size : 1/4' - 2'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Zinc Plated : Cr3

Contact Now

 Carbon steel hydraulic quick release plug for ISO 7241-1 B Interchange, KZB-PF series  Feature:  1. Poppet valves available to prevent uncoupled leakage.  2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing.  3. Critical parts are hardened for durability.  4. Durable ball-locking mechanism holds the mating halves together.  5. Socket and plug are precision machined from solid bar stock.  6. Carbon steel hydraulic quick release coupling series conforms to the standard of ISO7241-1B.  Compatible with PARKER 60 Series: FASTER HNV Series: AEROQUIP FD45 Series and HANSEN HK Series.   Application:    Carbon steel hydraulic quick release plug KZB-PF sereis is mainly applied for hydraulic fluid lines as well as the chemical water, steam, and some gases transfer lines.

Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (°C)
Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (°C)
KZB-01	DN3	ZG1/8	G1/8	NPT1/8	1/8	7500	5	NBR :-25~125
KZB-02	DN6.3	ZG1/4	G1/4	NPT1/4	1/4	6750	17
KZB-03	DN10	ZG3/8	G3/8	NPT3/8	3/8	4500	50
KZB-04	DN12.5	ZG1/2	G1/2	NPT1/2	1/2	5250	75
KZB-06	DN20	ZG3/4	G3/4	NPT3/4	3/4	3625	190
KZB-08	DN25	ZG1	G1	NPT1	1	4500	270
KZB-10	DN31.5	ZG1-1/4	G1-1/4	NPT1-1/4	1-1/4	2100	750
KZB-12	DN40	ZG1-1/2	G1-1/2	NPT1-1/2	1-1/2	2100	750
KZB-16	DN50	ZG2	G2	NPT2	2	1350	1600

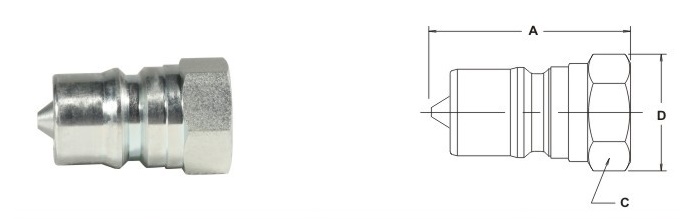

 Performance:  Carbon steel hydraulic quick release plug KZB-PF sereis:

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.)(mm.)(mm.)					(in.) (in.) (in.)
KZB-01PF	G1/8	41.0	14.0	17.0	KZB-01PF	NPT1/8	1.61	0.56	0.65
KZB-02PF	G1/4	35.0	19.0	22.0	KZB-02PF	NPT1/4	1.39	0.75	0.87
KZB-03PF	G3/8	38.0	22.0	26.0	KZB-03PF	NPT3/8	1.50	0.88	1.01
KZB-04PF	G1/2	44.0	28.0	33.0	KZB-04PF	NPT1/2	1.75	1.12	1.30
KZB-06PF	G3/4	74.0	35.0	40.0	KZB-06PF	NPT3/4	2.16	1.38	1.59
KZB-08PF	G1	66	41.0	48.0	KZB-08PF	NPT1	2.91	1.62	1.88

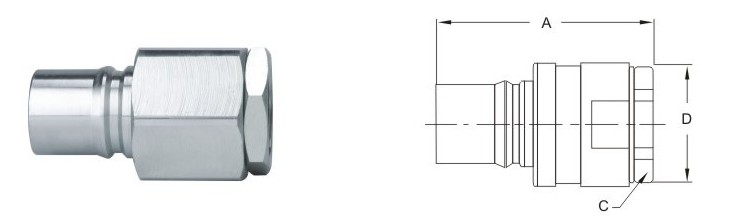

 Carbon steel hydraulic quick release plug KZB-PF sereis

Carbon Steel Hydraulic Quick Connect Couplings Release Plug For Gas Transfer Lines

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.) (mm.) (mm.)					(in.) (in.) (in.)
KZB12-10PF	G1 1/4	121.0	60.0	74.5	KZB12-N10PF	NPT1/4	4.75	2.35	2.95
KZB12-12PF	G1 1/2	124.5	60.0	74.5	KZB12-N12PF	NPT3/8	4.90	2.35	2.95
KZB16-16PF	G2	142.5	95.0	104.5	KZB16-N16PF	NPT1/2	5.65	3.75	4.10
KZB16-20PF	G2 2/1	151.5	95.0	104.5	KZB16-N20PF	NPT3/4	5.95	3.75	4.10
KZB16-24PF	G3	175.0	101.5	111.5	KZB16-N24PF	NPT1	6.87	4.00	4.39
