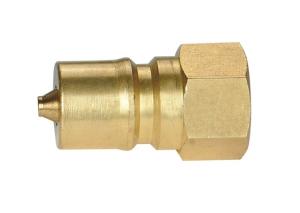

Brass Hydraulic Quick Connect Couplings Plug For Chemical Water KZD-PF Series

Brand Name : QPE

Model Number : KZD SERIES

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300

Price : Negotiable

Supply Ability : 90,000pcs/week, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

Standard : ISO 7241-1 series “B”

WP : Working pressures to 5,000 psi (345 bar)

Size : 1/4' - 2'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Material : Brass

Contact Now

 Brass Hydraulic Quick Plug For ISO 7241-1 B Interchange, KZD-PF Series  Feature:  1. Poppet valves available to prevent uncoupled leakage.  2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing.  3. Critical parts are hardened for durability.  4. Durable ball-locking mechanism holds the mating halves together.  5. Socket and plug are precision machined from solid bar stock.  6. Brass hydraulic quick plug KZD-PF Series for ISO 7241-1 B Interchange conforms to the standard of ISO7241-1B.  Compatible with PARKER 60 Series: FASTER HNV Series: AEROQUIP FD45 Series and HANSEN HK Series.  Application:    Brass hydraulic quick plug KZD-PF Seriesis mainly applied for hydraulic fluid lines as well as the chemical water, steam, and some gases transfer lines.

Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (°C)
Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (°C)
KZD-01	DN3	ZG1/8	G1/8	NPT1/8	1/8	3175	6	NBR :-25~125
KZD-02	DN6.3	ZG1/4	G1/4	NPT1/4	1/4	2900	16
KZD-03	DN10	ZG3/8	G3/8	NPT3/8	3/8	2175	25
KZD-04	DN12.5	ZG1/2	G1/2	NPT1/2	1/2	2450	60
KZD-06	DN20	ZG3/4	G3/4	NPT3/4	3/4	1450	110
KZD-08	DN25	ZG1	G1	NPT1	1	2025	150
KZD-12	DN40	ZG1-1/2	G1-1/2	NPT1-1/2	1-1/2	1000	750
KZD-16	DN50	ZG2	G2	NPT2	2	850	1600

 Performance:  Brass hydraulic quick plug

Brass Hydraulic Quick Connect Couplings Plug For Chemical Water KZD-PF Series

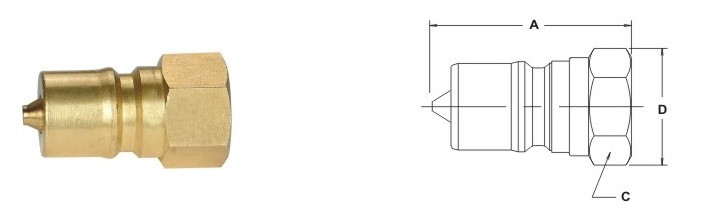

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.)(mm.)(mm.)					(in.) (in.) (in.)
KZD-01PF	G1/8	41.0	14.0	17.0	KZD-01PF	NPT1/8	1.61	0.56	0.65
KZD-02PF	G1/4	35.0	19.0	22.0	KZD-02PF	NPT1/4	1.39	0.75	0.87
KZD-03PF	G3/8	38.0	22.0	26.0	KZD-03PF	NPT3/8	1.50	0.88	1.01
KZD-04PF	G1/2	44.0	28.0	33.0	KZD-04PF	NPT1/2	1.75	1.12	1.30
KZD-06PF	G3/4	74.0	35.0	40.0	KZD-06PF	NPT3/4	2.16	1.38	1.59
KZD-08PF	G1	66	41.0	48.0	KZD-08PF	NPT1	2.91	1.62	1.88

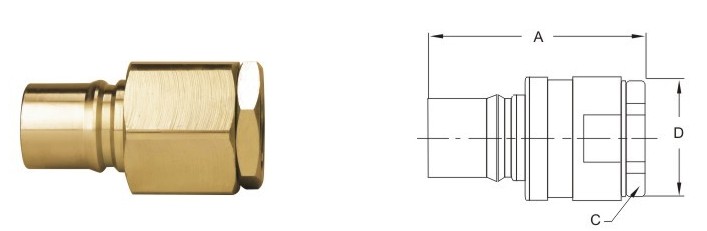

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.) (mm.) (mm.)					(in.) (in.) (in.)
KZD12-10PF	G1 1/4	121.0	60.0	74.5	KZD12-N10PF	NPT1/4	4.75	2.35	2.95
KZD12-12PF	G1 1/2	124.5	60.0	74.5	KZD12-N12PF	NPT3/8	4.90	2.35	2.95
KZD16-16PF	G2	142.5	95.0	104.5	KZD16-1N6PF	NPT1/2	5.65	3.75	4.10
KZD16-20PF	G2 2/1	151.5	95.0	104.5	KZD16-N20PF	NPT3/4	5.95	3.75	4.10
KZD16-24PF	G3	175.0	101.5	111.5	KZD16-N24PF	NPT1	6.87	4.00	4.39
